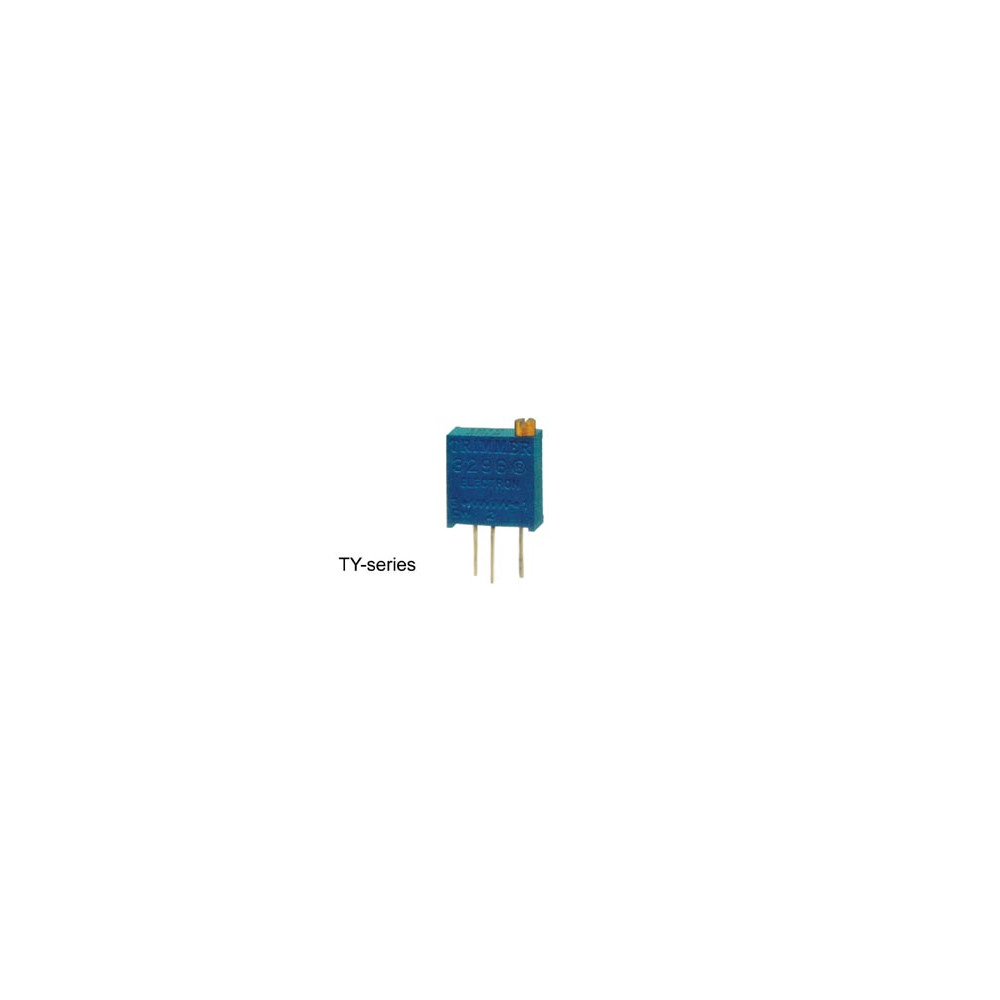

COUPE-BORD CERMET MULTI-TOURS 500E
Professional multiturn trimming potentiometers.
The cermet resistance element offers stability and high resolution. The trimmer is actuated by a screw with a slipping clutch at each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.
Caractéristiques
- MEC CITEC 4290Y
- vertical mounting
- vertical adjustment
- pin layout: triangle
- range: 100E to 1M (E3 series)
Spécifications
- puissance: 0.5W at 70°C
- tolérance: ±10%
- tension de sortie: 300Vdc max.
- rotation:
- circuit électrique: 22 turns nom.
- mechanical: 25 turns nom.
Dépêchez-vous ! Seulement 137 articles restants en stock.
Fiche technique
- Packaging
- Bulk
Références spécifiques
- EAN-13
- 5410329755485
